Logistics regression

Classification is a kind of problem in machine learning in which a machine learning model assigns the respective class to unseen data based on feature value. If the deciding classes are only two then the problem is known as a binary classification problem. If the classes are more than 2, then it is a multiclass logistic regression problem.

sigmoidal function

\sigma(z)=\left(\frac{1}{1 + e^{-z}}\right)

where

undetermined values:

This is a specific function that converts the values of Z from to in logistic regression. This function returns a value between 0 and 1 (probabilistic).

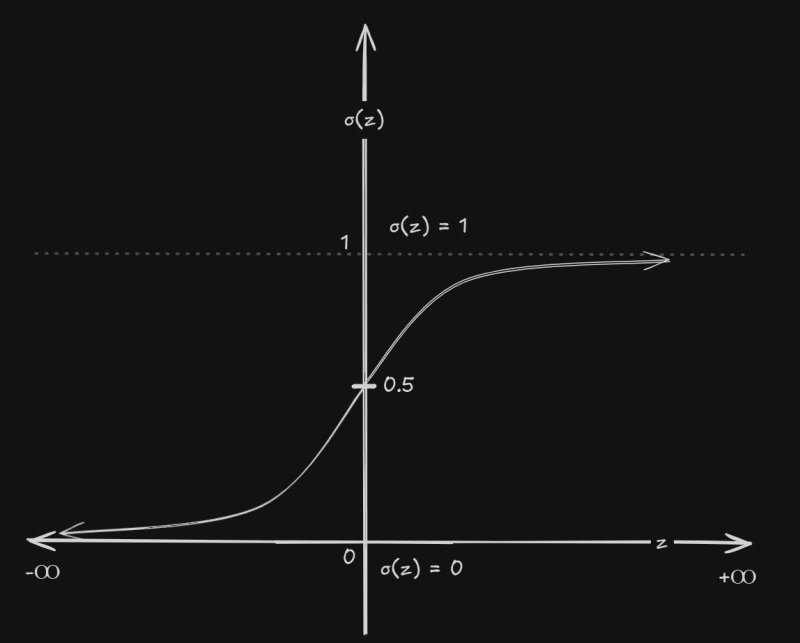

Logistic regression sigmoid function graph showing probability curve ranging from 0 to 1 with decision boundary at 0.5

\sigma(z)=\left(\frac{1}{1 + e^{-(- \infty)}}\right)

\sigma(z) = \left ( \frac{1}{1 + e^{\infty}} \right )

\sigma(z) = \left ( \frac{1}{\infty} \right )

\sigma(z) = 0

z = a + bx

\sigma(z)=\left(\frac{1}{1 + e^{-\infty}}\right)

\sigma(z) = \left ( \frac{1}{1 + \frac{1}{e^{\infty}}} \right )

\sigma(z) = \left ( \frac{1}{1 + \frac{1}{\infty}} \right )

\sigma(z) = \left ( \frac{1}{1 + 0} \right )

\sigma(z) = 1

In linear regression , is the output variable which gives a numerical value by using the sigmoidal function . We can turn the value between 0 and 1.

\sigma(z)=\left(\frac{1}{1 + e^{-z}}\right)

\sigma(z)=\left(\frac{1}{1 + e^{-(a+bx)}}\right)

where

Odd can be defined as:

\frac{px}{1-px}

Where is the probability of the occurrence of .

This means:

\frac{px}{1-px}=\frac{probability\ of\ occurrence\ of\ x}{probability\ of\ not\ occurrence\ of\ x}

\sigma(z)=\left(\frac{1}{1 + e^{-z}}\right)

e^{-z}=\left(\frac{1}{\sigma(z)}\right)-1

e^{-z} = \frac{1 - \sigma(z)}{\sigma(z)}

e^{z} = \frac{\sigma(z)}{1 - \sigma(z)}

where

Taking of both sides

z=log\left(\frac{ \sigma(z) }{1 - \sigma(z)}\right)

In logistic regression, we obtain a value between 0 and 1, which is a probability value, and then we decide on a threshold value.

V (value)
T (Threshold)

Then a particular class is assigned to z, otherwise the other class.

is 0. If the result is greater than class A, otherwise class B

Binomial logistic regression.

If the number of assigned classes is two, then the logistic regression is binomial logistic regression; if the number of assigned classes is more than two, then it is multinomial logistic regression.

Logistic Regression

Logistic Degrees models are used in Binary classification and multi-classification. They are widely used in email categorization, disease detection, fraud detection, and text emotion analysis

Measurement of the performance of the machine learning model metric

confusion matrix

accuracy
precision
recall
F1 score (harmonic mean)

Cow +ve
Deer -ve

Actual Class	Cow	Cow	Deer	Deer	Cow	Deer	Cow	Deer	Cow	Cow
Predicted Class	Deer	Cow	Deer	Deer	Deer	Cow	Cow	Cow	Cow	Deer
	FN	TP	TN	TN	FN	FP	TP	FP	TP	FN

Accuracy=\frac{TP+TN}{TP+TN+FP+FN}

Accuracy=\frac{3+2}{10}=\frac{5}{10}=0.5

Precision=\frac{TP}{TP+FP}

Recall=\frac{TP}{TP+FN}

F_1Score=\frac{2}{\frac{1}{Precision}+\frac{1}{Recall}}

F_1Score=\frac{2(Precision\times Recall)}{\left(Precision+Recall\right)}
